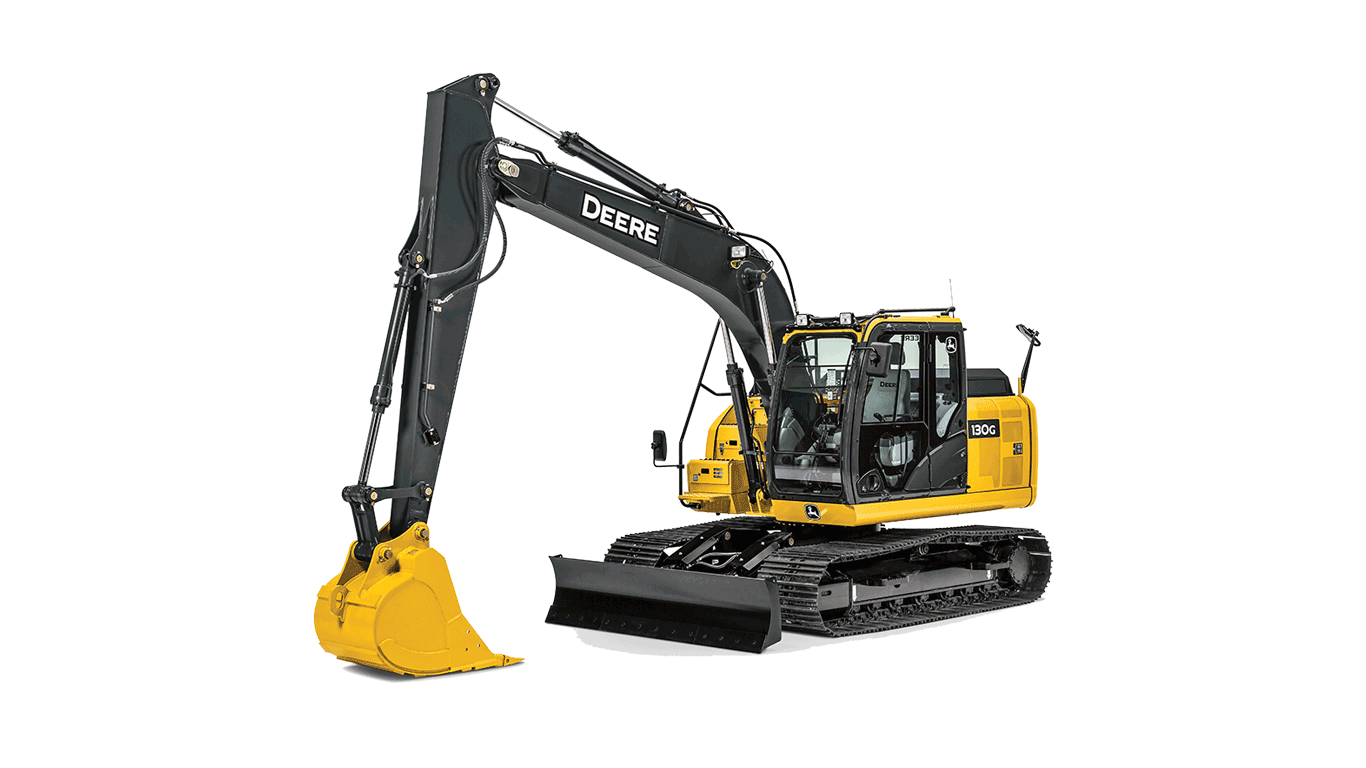

130G EXCAVATOR
Excavator
- Net Power: 73 kW (98 hp)
- Max. Digging Depth: 6.03 m (19 ft. 9 in.)
- Operating Weight: 13 407 kg (29,531 lb.)
Features
The EPA FT4/EU Stage IV engine employs field-proven cooled exhaust gas recirculation (EGR) for reducing NOX, and a diesel particulate filter and diesel oxidation catalyst to reduce particulate matter.
Ash-service intervals for the diesel particulate filter (DPF) are condition based, with the machine notifying the operator before service is required.
Highly efficient heavy-duty cooling system keeps things cool, even in tough environments or high altitudes. Cool-on-demand suction-type fan helps reduce material buildup and maintenance.
Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement and effort. Optional sliding switch provides proportional speed control.
Press the power-boost button on the right-hand control for extra digging power. Power boost also kicks in automatically in boom-up/lifting functions.
Three productivity modes allow you to choose the digging style that fits the job:
- High-productivity delivers more power and faster hydraulic response to move more material.
- Power delivers a balance of power, speed, and fuel economy for normal operation.
- Economy limits top speed and helps save fuel.
Wide expanse of front and side glass, narrow front cab posts, large tinted overhead hatch, and numerous mirrors provide virtually unrestricted all-around visibility.
Large hinged doors provide wide-open access to service items. Lube banks, filters, and checkpoints are grouped for added convenience.
Durable booms, arms and mainframes are warranted for three years or 10,000 hours.
Specifications
Compare the specifications of up to 4 models
DRIVELINE | 130g-excavator Current Model |
---|---|
Emission Rating | Tier 4 |
Engine Manufacturer | John Deere |
Number Of Cylinders | 4 |
Displacement, ltr (Inches³) | 4.5 (275) |
Rated speed, rpm | 2000 |
Engine Output - Net, kW (hp) | 73 (98) |
Number Of Carrier Rollers - Each Side | 1 |
Number Of Track Rollers - Each Side | 7 |
Track Shoe Width, mm (inches) | 700 (28) |
DIMENSIONS | |
Transport Length Mono Boom, mm (ft/in) | 7710 (25 ft 4 in) |
Transport Height - Maximum, mm (ft/in) | 2870 (9 ft 5 in) |
Overall Undercarriage Width, mm (ft/in) | 2690 (8 ft 10 in) |
Track Length On Ground, mm (ft/in) | 2880 (9 ft 5 in) |
Overall Undercarriage Length, mm (ft/in) | 3580 (11 ft 9 in) |
Tailswing Radius, mm (ft/in) | 2190 (7 ft 2 in) |
Ground Clearance, mm (inches) | 410 (16) |
Width over fixed tracks, mm (ft/in) | 2690 (8 ft 10 in) |
Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
Digging Reach - Mono Boom, mm (ft/in) | 8770 (28 ft 9 in) |
Ground Level Reach - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
Dig Height - Mono Boom, mm (ft/in) | 8930 (29 ft 4 in) |
Dump Height - Mono Boom, mm (ft/in) | 6520 (21 ft 5 in) |
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 5880 (19 ft 3 in) |
Dig Depth - Mono Boom, mm (ft/in) | 6030 (19 ft 9 in) |
Standard Dipper, mm (ft/in) | 3010 (9 ft 11 in) |
CAPACITIES | |
Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
Hydraulic Tank, ltr (gallons (US)) | 69 (18.2) |
Number Of Batteries | 2 |
Voltage, V | 24 |
PERFORMANCE | |
Ground Bearing Pressure, kPa (PSI) | 32 (4.64) |
Slew Speed, rpm | 13.3 |
Slew Torque, kNm (lbf / ft) | 34 (25000) |
Travel Speed - High, kph (mph) | 5.5 (3.4) |
Tractive Force, kN (lbf) | 110 (24729) |
Dipper Tearout, kN (lbf) | 60 (13521) |
Bucket Breakout, kN (lbf) | 96 (21480) |
Gradeability, % | 70 |
Total Flow, lt/min (gallons (US) / min) | 210 (56) |
Bucket Pressure, bar (PSI) | 343 (4980) |
Boost Pressure, bar (PSI) | 363 (5265) |
