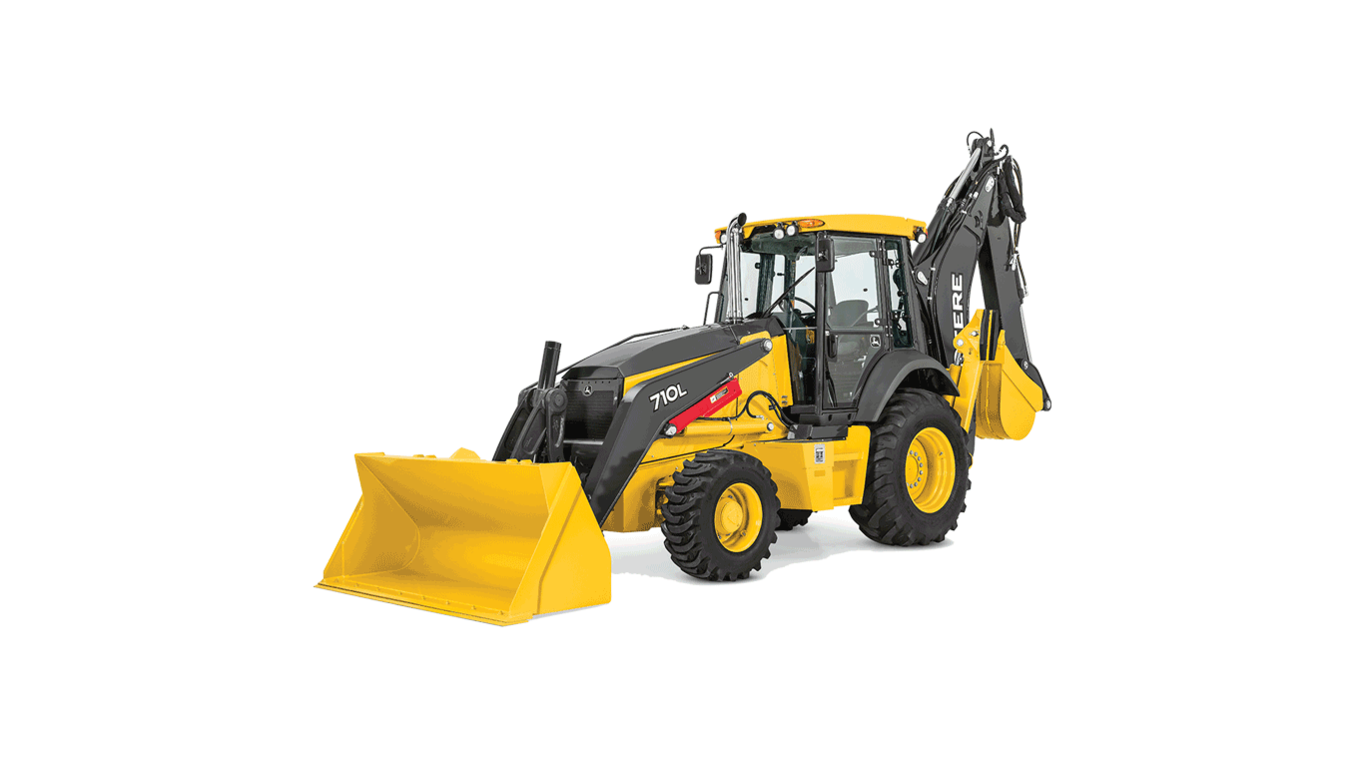

710L BACKHOE

Backhoe

  • Net Peak Power: 110 kW (148 hp) at 2,240 rpm
  • Max Standard Dipperstick Digging Depth: 5.26 m (17 ft. 3 in.)
  • Operating Weight 11,607 kg (25,588 lb.)





Features



John Deere Power Systems 4.5L engines are designed with replaceable cylinder liners for superior cooling, reduced oil breakdown, and reduced ring wear. This means cooler engine components and longer life as compared to cast-in-block designs.

Standard John Deere PowerShift™ Transmission provides smooth, on-the-fly, clutch-free gear shifts.

PowerShift™ transmission provides on-the-go seemingly clutchless gear changes, for the operator.

True four-wheel drive on command. Standard limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive "on the fly" with the touch of a button on the new loader control.

L-Series pilot towers provide more legroom and additional space for transitioning between loader and backhoe operation. Palm-on-top loader-control grip makes operation even easier with integrated electric clutch disconnect and momentary MFWD.

An additional 10–15 percent increase in craning capacity is activated through Lift Mode at the push of a button on the convenient sealed switch module.

Ride control, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain.

Same-side, ground-level service points help speed daily checks and fills. Other common-sense features such as quick-change filters, extended service intervals, simple-to-read sight gauges, and easy-access grease zerks help increase uptime and lower daily operating costs.

Machine-security system with touchpad passcode helps prevent unauthorized operation.

Specifications


Compare the specifications of up to 4 models

DRIVELINE 710l-backhoe
Current Model
Engine Manufacturer John Deere
Engine ModelPowerTech Plus 4045HT084
Displacement, ltr (Inches³)4.5 (276)
Rated Speed, rpm2240
Engine Output - Net, kW (hp)110 (148)
Transmission TypePower Shift
Service Brake TypeWet Disc
Service Brake ActuationHydraulic
DIMENSIONS
Max length with std. Stick, mm (ft/in)8230 (27 ft )
Height over std Stick, mm (ft/in)4450 (14 ft 7 in)
Height over ext Stick, mm (ft/in)4490 (14 ft 9 in)
Width over tires, mm (ft/in)2370 (7 ft 9 in)
Wheelbase - 4WD, mm (ft/in)2550 (8 ft 4 in)
Ground Clearance, mm (inches)356 (14)
Width - General Purpose Bucket, mm (ft/in)2464 (8 ft 1 in)
Bucket Rotation - Position 1, Degrees190
Bucket Pin Height - General Purpose, mm (ft/in)3730 (12 ft 3 in)
Dump Height - General Purpose, mm (ft/in)2890 (9 ft 6 in)
Dump Reach - General Purpose, mm (inches)768 (30.2)
Digging Depth - General Purpose, mm (inches)157 (6.2)
CAPACITIES
Fuel Tank, ltr (gallons (US))174.1 (46)
Hydraulic Tank, ltr (gallons (US))50.1 (13.2)
Rear Axle, ltr (gallons (US))25 (6.6)
4WD Front Axle, ltr (gallons (US))15 (3.975)
Bucket Capacity - Standard General Purpose, m³ (yd³)1.24 (1.62)
Battery Voltage, V12
Bucket Tearout - Non-Extending Dipper, kN (lbf)84.3 (18959)
Stick tearout, kN (lbf)57.4 (12910)
Boom Lift - Maximum Reach - Non-Extending Dipper, kg (lbs)2321 (5118)
Bucket Breakout - General Purpose, kN (lbf)73.6 (16539)
Lift To Full Height - General Purpose Bucket, kg (lbs)4475 (9866)
PumpAxial Piston Pump
Pump Flow, lt/min (gallons (US) / min)197 (52)
WEIGHTS
Operating Weight, kg (lbs)11607 (25588)
Weight - 4WD, GP, std Stick, kg (lbs)11607 (25588)
