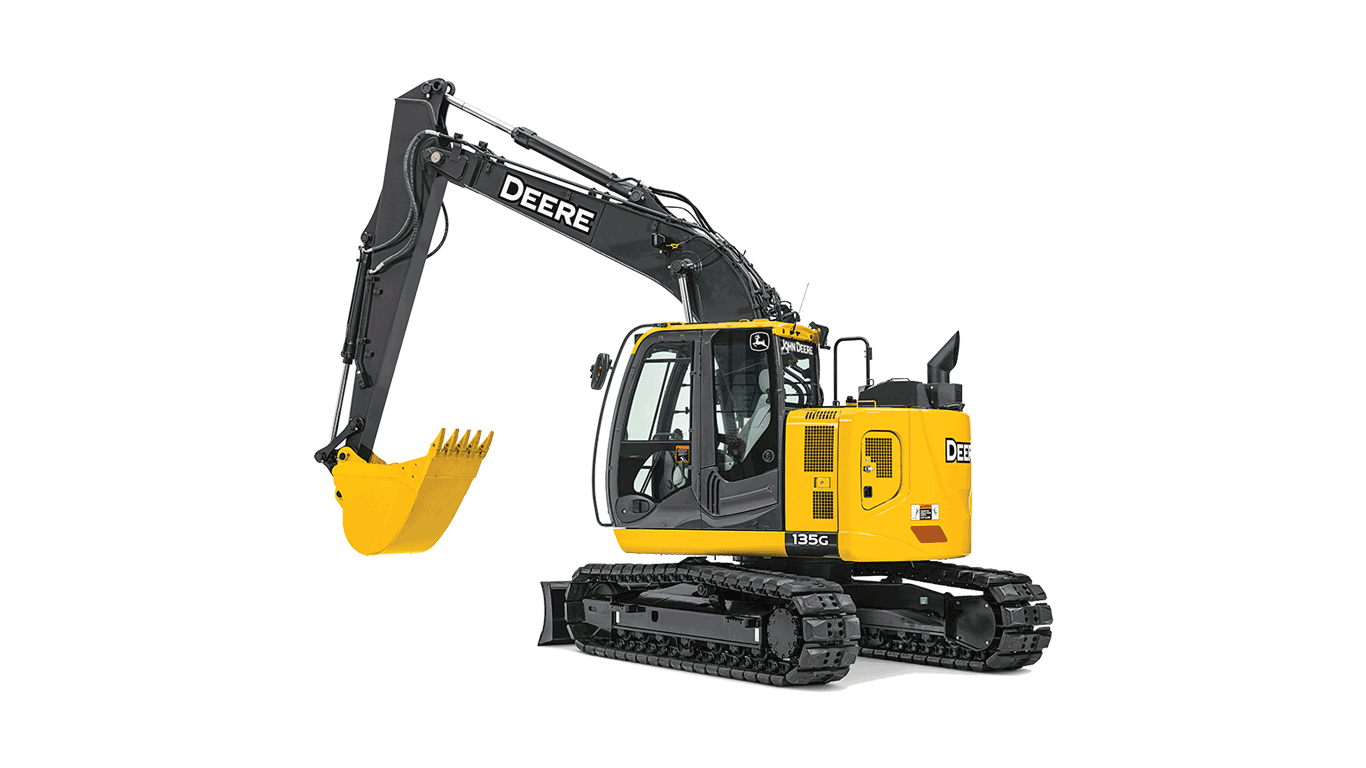

135G EXCAVATOR

Excavator

  • Net Power: 75 kW (101 hp)
  • Max. Digging Depth: 5.49 m (18 ft. 4 in.)
  • Operating Weight: 13,900 kg (30,620 lb.)





Features



Whether up against a wall or between a rock and a hard place, this close-quarter specialist makes it all look pretty easy.

FT4/Stage IV engine requires no diesel particulate filter (DPF). Extended service intervals help maximize uptime.

Highly efficient heavy-duty cooling system keeps things cool, even in tough environments or high altitudes. Cool-on-demand suction-type fan helps reduce material buildup and maintenance.

Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement and effort. Optional sliding switch provides proportional speed control.

Press the power-boost button on the right-hand control for extra digging power. Power boost also kicks in automatically in boom-up/lifting functions.

Three productivity modes allow you to choose the digging style that fits the job:

  • High-productivity delivers more power and faster hydraulic response to move more material.
  • Power delivers a balance of power, speed, and fuel economy for normal operation.
  • Economy limits top speed and helps save fuel.

New hood design, expanded front and side glass, narrow front cab posts, overhead glass, and numerous mirrors provide optimal visibility.

Vertical spin-on fuel and engine oil filters are positioned for convenient and simplified servicing.

Large fuel tanks and 500- 5,000 hour engine and hydraulic oil-service intervals decrease downtime for routine maintenance.

A John Deere exclusive, three welded bulkheads within the boom resist torsional stress for amazing durability.

Specifications


Compare the specifications of up to 4 models

DRIVELINE 135g-excavator
Current Model
Emission RatingTier 4
Engine Manufacturer Isuzu
Number Of Cylinders (Per Engine)4
Displacement, ltr (Inches�)3 (182)
Rated speed, rpm2000
Engine Output - Net, kW (hp)75 (101)
Number Of Carrier Rollers - Each Side1
Number Of Track Rollers - Each Side7
Track Shoe Width, mm (inches)500 (20)
DIMENSIONS
Transport Length Mono Boom, mm (ft/in)7370 (24 ft 2 in)
Transport Height - Maximum, mm (ft/in)2870 (9 ft 5 in)
Overall Width, mm (ft/in)2490 (8 ft 2 in)
Track Length On Ground, mm (ft/in)2880 (9 ft 5 in)
Undercarriage Overall Length, mm (ft/in)3580 (11 ft 9 in)
Tailswing Radius, mm (ft/in)1490 (4 ft 11 in)
Ground Clearance, mm (inches)410 (16)
Width over standard tracks, mm (ft/in)2490 (8 ft 2 in)
Track Gauge, mm (ft/in)1990 (6 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in)8390 (27 ft 6 in)
Ground Level Reach - Mono Boom, mm (ft/in)8240 (26 ft 8 in)
Dig Height - Mono Boom, mm (ft/in)9290 (30 ft 10 in)
Dump Height - Mono Boom, mm (ft/in)6830 (22 ft 6 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)5270 (17 ft 6 in)
Dig Depth - Mono Boom, mm (ft/in)5490 (18 ft 4 in)
Standard Dipper, mm (ft/in)2520 (8 ft 3 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))220 (58)
Hydraulic Tank, ltr (gallons (US))60 (15.9)
Number Of Batteries2
Voltage, V24
PERFORMANCE
Ground Bearing Pressure, kPa (PSI)43 (6.24)
Slew Speed, rpm13.3
Slew Torque, kNm (lbf / ft)34 (25000)
Travel Speed - High, kph (mph)5.5 (3.4)
Tractive Force, kN (lbf)110 (24729)
Dipper Tearout, kN (lbf)69 (15510)
Bucket Breakout, kN (lbf)104 (23380)
Gradeability, %70
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)210 (56)
Bucket Pressure, bar (PSI)343 (4975)
Boost Pressure, bar (PSI)363 (5265)
