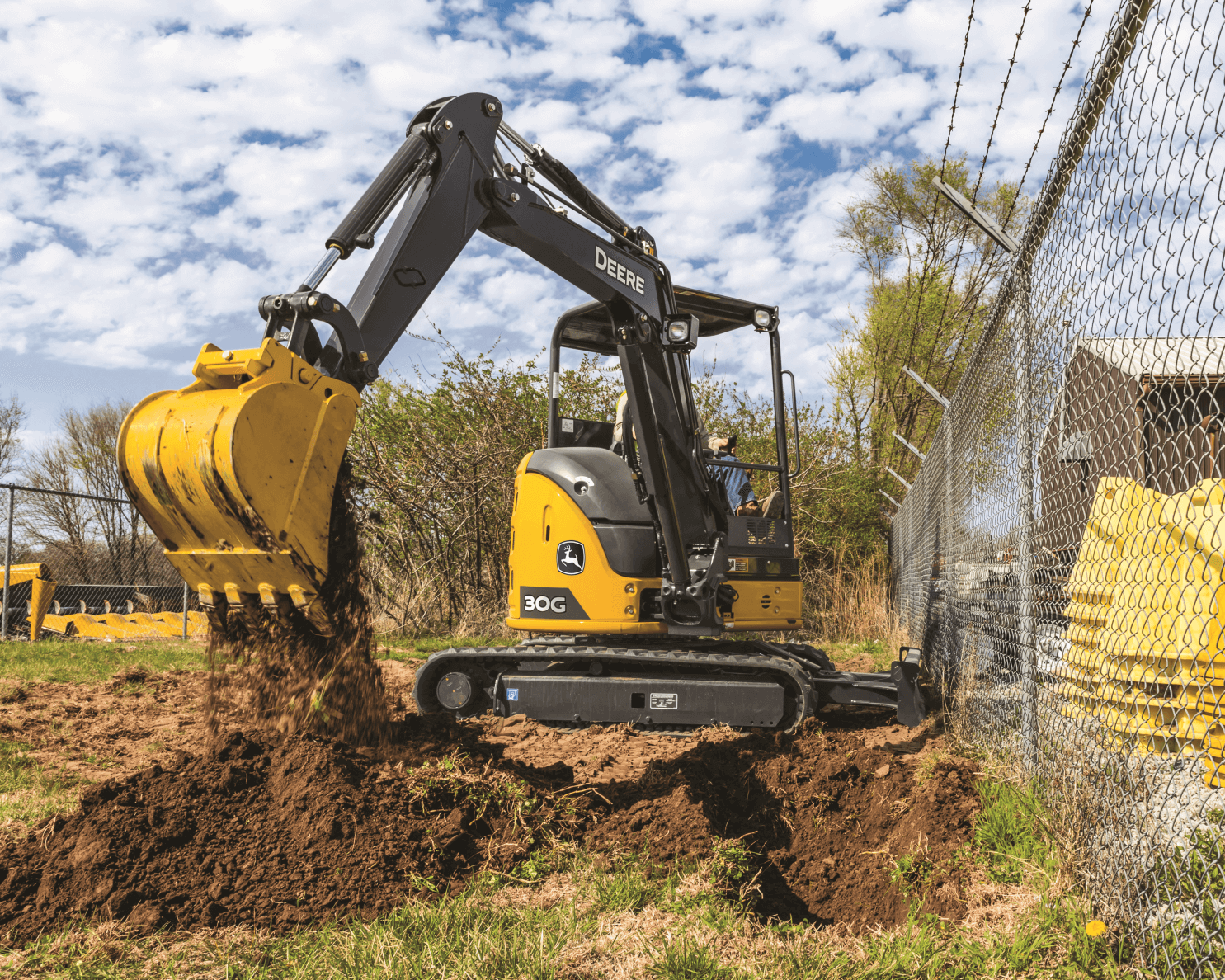

30G EXCAVATOR
Excavator
- Net Power: 17.4 kW (23 hp)
- Max Digging Depth: 2.79 m (9 ft. 2 in.)
- Operating Weight: 3275 kg (7,220 lb.)
Apply For Financing
Features
Filling the gap between the 26G and the 35G, the 30G delivers impressive bucket force, arm force, breakout force, and lift capacity, to power through tough digging conditions.
- Reduced-tail-swing design makes G-Series machines extra maneuverable and productive.
- Transports easily between jobsites
Go from backhoe- to excavator-style controls with the twist of a wrist. Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern.
High-torque, fuel-efficient diesels meet EPA Final Tier 4/EU Stage IV emission standards without after-treatment devices – reducing maintenance and expense.
- Large entryways, unrestricted sightlines, spacious operator stations deliver comfort, convenience, and visibility
- Optional cab’s front glass is expansive for exceptional visibility
Specifications
Compare the specifications of up to 4 models
DRIVELINE | 30g-excavator Current Model |
---|---|
Emission Rating | Tier 4 |
Engine Manufacturer | Yanmar |
Number Of Cylinders (Per Engine) | 3 |
Displacement, ltr (Inches�) | 1.642 (100.2) |
Rated speed, rpm | 2400 |
Engine Output - Net, kW (hp) | 17.4 (23) |
Number Of Carrier Rollers - Each Side | 1 |
Number Of Track Rollers - Each Side | 4 |
Track Shoe Width, mm (inches) | 300 (12) |
DIMENSIONS | |
Transport Length Mono Boom, mm (ft/in) | 4450 (14 ft 7 in) |
Transport Height - Maximum, mm (ft/in) | 2480 (8 ft 2 in) |
Overall Width, mm (ft/in) | 1550 (5 ft 1 in) |
Track Length On Ground, mm (ft/in) | 1660 (5 ft 5 in) |
Undercarriage Overall Length, mm (ft/in) | 2110 (6 ft 11 in) |
Tailswing Radius, mm (ft/in) | 775 (2 ft 7 in) |
Ground Clearance, mm (inches) | 280 (11) |
Dozer Blade Height, mm (inches) | 373 (15) |
Dozer Blade Width, mm (ft/in) | 1740 (5 ft 9 in) |
Width over standard tracks, mm (ft/in) | 1550 (5 ft 1 in) |
Track Gauge, mm (ft/in) | 1250 (4 ft 1 in) |
Digging Reach - Mono Boom, mm (ft/in) | 4890 (16 ft 1 in) |
Dig Height - Mono Boom, mm (ft/in) | 4620 (15 ft 2 in) |
Dump Height - Mono Boom, mm (ft/in) | 3200 (10 ft 6 in) |
Dig Depth - Mono Boom, mm (ft/in) | 2790 (9 ft 2 in) |
Standard Dipper, mm (ft/in) | 1170 (3 ft 10 in) |
CAPACITIES | |
Fuel Tank, ltr (gallons (US)) | 42 (11.1) |
Hydraulic Tank, ltr (gallons (US)) | 43 (11.4) |
Number Of Batteries | 1 |
Voltage, V | 12 |
PERFORMANCE | |
Ground Bearing Pressure, kPa (PSI) | 28 (4.1) |
Slew Speed, rpm | 19.8 |
Travel Speed - High, kph (mph) | 4.3 (2.7) |
Main Pumps - Maximum Flow, lt/min (gallons (US) / min) | 76.8 (20.2) |
WEIGHTS | |
Operating Weight, kg (lbs) | 3105 (6850) |
